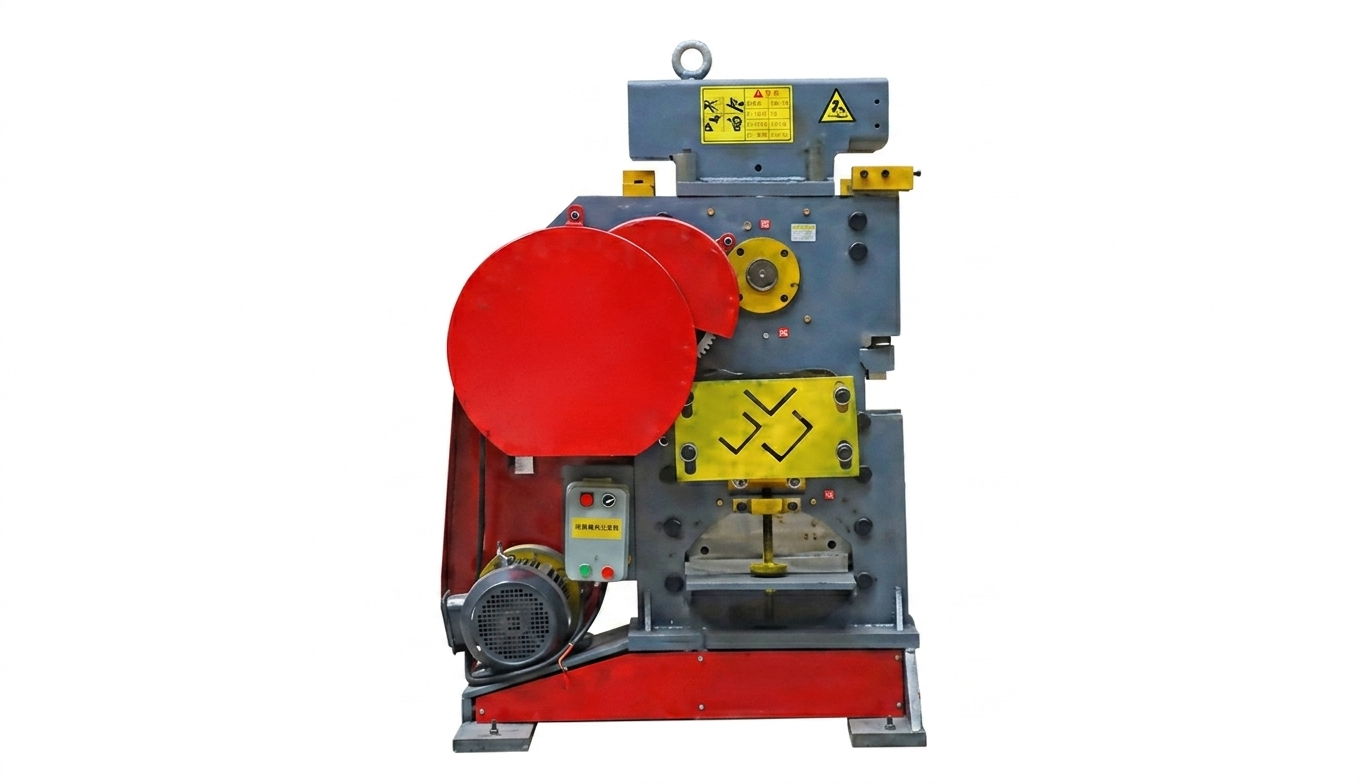

Punching & Shearing Machine

Product Overview

This multi-functional industrial ironworker is a versatile workstation designed for high-efficiency metal fabrication. It integrates several essential metalworking processes into a single, compact footprint, allowing operators to transition seamlessly between punching, shearing, and section cutting without the need for multiple machines.

Core Capabilities

• Precision Punching: Designed for creating clean, accurate holes in various plate thicknesses and profiles. It supports a wide range of die sizes for custom applications.

• Versatile Section Cutting: Equipped with dedicated stations for cutting angle iron, square bars, and round bars with minimal deformation.

• Plate Shearing: Features a high-strength shearing station for processing flat metal sheets and plates, ensuring straight, burr-free edges.

• Notching Station: Includes a specialized station for V-notching or rectangular notching, ideal for preparing joints in frames and structural components.

Key Technical Features

• Integrated Hydraulic System: Built with a high-performance hydraulic drive that ensures smooth, consistent pressure throughout the stroke, reducing mechanical wear and increasing tool life.

• Multi-Station Design: Multiple operators can potentially work on different stations simultaneously (depending on configuration), significantly increasing workshop throughput.

• Reinforced Steel Frame: The machine body is constructed from heavy-duty, stress-relieved steel plates, providing the rigidity necessary to maintain accuracy under maximum load.

• Adjustable Stroke Control: Features an adjustable stroke length to optimize cycle times for smaller workpieces, improving operational efficiency.

• Safety Interlocking: Includes emergency stop triggers and protective shielding around moving parts to ensure a high level of operator safety during high-pressure operations.

Intelligent Enhancements & Utility

• Shadowless LED Illumination: Integrated lighting at the punching and shearing stations to improve visibility and accuracy in dimly lit industrial environments.

• Scale-Positioning Tables: Both the punching and notching stations are equipped with gauged tables, allowing for rapid, repeatable positioning without manual marking.

• Low-Maintenance Bushings: High-quality lubrication points and durable bushings are utilized to minimize downtime and simplify the routine maintenance schedule.

• Dual-Pedal Operation: Independent foot pedals allow for hands-free operation, giving the user better control over material alignment and feed.
